NEOPROOF range of products are single part, high quality, pollution free waterproof membrane coating. This range includes products based on Synthetic Resins / Superior Hybrid Polymers / Elastomeric compound/ Acrylic resins & Polymer either standalone or in suitable combination. They differ from other conventional waterproof coating due to its excellent flexibility & superior UV resistance. Their thixotropic nature make them ideal for use on both horizontal & vertical surfaces. The coating accommodates limited crack movement in underlying surfaces and bonds excellently to most building material thus becoming a part of concrete repair. The coating is available in WHITE / BLACK / GREY colour. White coating offers added benefit of High Solar Reflectivity.

Features

  • Single Component.
  • Cold Applied Coating.
  • Seamless, Tough & Highly Elastic Rubber like Membrane.
  • Unique additives added to make it durable.
  • Excelllent Anti Fungal & Anti bacterial properties.
  • Non Toxic & User friendly.
  • High Solar Reflectivity & Low Heat Transfer.

Benefits:

  • Requires no mixing or heating, saves labor costs.
  • Withstands expansion/contraction & resists crack.
  • Highly resistant to oxidation, UV & ozone.
  • Forms a impervious & waterproof blanket.
  • Ensures durable bond.
  • Resists peeling, chipping & lasts long.
  • Eliminates costly forms of other roofing system.

Limitations:

  • Do not apply in direct sunlight / during rains & when ambient temperature is < 10oC or> 40oC
  • Dilute with potable water & follow dilution ratio. Not to store Diluted material
  • Never apply succeeding coats before full drying of previous coat, do not mix 2 products together
  • As with any chemical exercise safe working practice and follow instructions in datasheet.

GRADES WITH TECHNICAL SPECIFICATIONS

NEOPROOF RC 200 (ACRYLIC WATERPROOF MEMBRANE)

NEOPROOF RC 200
RC 200 is a perfect Roof Coating recommended for all exposed application. Being thixotropic it is ideal for use on both horizontal & vertical surfaces. Offers a combo of Flexibility & Durability. As a Top Coat, it offers superior UV resistance and Solar reflectivity.
APPEARANCE & COLOUR White Viscous Liquid
NVM % ( ASTM D 1475-03) 63 ± 5
VISCOSITY (POISE) SP. NO 4/7, RPM:10/20@ 25˚C 600 ± 100 thixotropic
SP. GRAVITY -ASTM-D 1644-03 1.30 ± 0.10
DRYING TIME @25˚C (ASTM D 1540-03) 2 hrs ( Approx)
CURING TIME (@20˚C 50% RH) (ASTM C 4125) 48 hrs
HARDNESS ( SHORE A) (ASTM-D 2240- 05) 55 ± 5
ELONGATION(ASTM-D 2370-98 > 300% - at break
WATER VAPOR TRANSMISSION
ASTM E 96-95;G / HR - M²
0.97
WATER PERMEABILITY (SSTM-A 3245) Almost Nil
COVERAGE PER SINGLE COAT PER KG## 25-30 sq. ft in concrete
TENSILE STRENGTH N / MM² (ASTM –D 412 -98 A) 1.99
ADHESION STRENGTH N / MM² ASTM –D903-98 66
PULL OUT TEST N / MM² BS –1881:PART 207:1992 2.704
UV RESISTIVITY Excellent
CHEMICAL RESISTANCE Good
INSULATION PROPERTIES Good
TEMPERATURE RESISTANCE (ASTM A491) Approx. -30˚C to + 100˚C
FLAMMABILITY- DRIED FILM Non Flammable
PACK SIZE IN KG 1/5/10/20/200

NEOPROOF WC 201 (ACRYLIC WATERPROOF MEMBRANE)

NEOPROOF WC 201
WC 201 is a waterproofing coat for external walls. Recommended for Vertical applications only. Can be a top coat itself or can be over coated with compatible NEO's Exterior Emulsion Paints. As a Top Coat, it offers triple benefits- cooling effect to interiors, decorating & waterproofing exteriors.
APPEARANCE & COLOUR White / Grey Viscous Liquid
NVM % ( ASTM D 1475-03) 60 ± 5
VISCOSITY (POISE) SP. NO 4/7, RPM:10/20@ 25˚C 650 ± 100 thixotropic
SP. GRAVITY -ASTM-D 1644-03 1.35 ± 0.10
DRYING TIME @25˚C (ASTM D 1540-03) 20-30 minutes ( Approx)
CURING TIME (@20˚C 50% RH) (ASTM C 4125) 8-10 hrs (approx)
HARDNESS ( SHORE A) (ASTM-D 2240- 05) NA
ELONGATION(ASTM-D 2370-98 NA
WATER VAPOR TRANSMISSION
ASTM E 96-95;G / HR - M²
NA
WATER PERMEABILITY (SSTM-A 3245) Almost Nil
COVERAGE PER SINGLE COAT PER KG## 20-30 sq. ft in concrete
TENSILE STRENGTH N / MM² (ASTM –D 412 -98 A) NA
ADHESION STRENGTH N / MM² ASTM –D903-98 NA
PULL OUT TEST N / MM² BS –1881:PART 207:1992 NA
UV RESISTIVITY Good
CHEMICAL RESISTANCE Good
INSULATION PROPERTIES NA
TEMPERATURE RESISTANCE (ASTM A491) Approx. -30˚C to + 100˚C
FLAMMABILITY- DRIED FILM Non Flammable
PACK SIZE IN KG 1/5/10/20/200

NEOPROOF RC 203 (ACRYLIC WATERPROOF MEMBRANE)

NEOPROOF RC 203
RC 203 is a Self Levelling Roof Coating recommended for horizontal application only. Dazzling White in Colur, the coating offers superior UV resistance & Solar reflectivity. Repels Dust and hence retains aethetic look longer. Gives high water repellency.
APPEARANCE & COLOUR Xtra White Viscous Liquid
NVM % ( ASTM D 1475-03) 58 ± 5
VISCOSITY (POISE) SP. NO 4/7, RPM:10/20@ 25˚C 600 ± 100
SP. GRAVITY -ASTM-D 1644-03 1.35 ± 0.10
DRYING TIME @25˚C (ASTM D 1540-03) 2 hrs ( Approx)
CURING TIME (@20˚C 50% RH) (ASTM C 4125) 10-12 hrs (approx)
HARDNESS ( SHORE A) (ASTM-D 2240- 05) 58 ± 5
ELONGATION(ASTM-D 2370-98 > 200%
WATER VAPOR TRANSMISSION
ASTM E 96-95; G / HR - M²
1.525
WATER PERMEABILITY (SSTM-A 3245) Almost Nil
COVERAGE PER SINGLE COAT PER KG## 25-35 sq. ft in concrete
TENSILE STRENGTH N / MM² (ASTM –D 412 -98 A) 0.912
ADHESION STRENGTH N / MM² ASTM –D903-98 NA
PULL OUT TEST N / MM² BS –1881:PART 207:1992 NA
UV RESISTIVITY > 10000 hr no color fade / deterioration
CHEMICAL RESISTANCE Good
INSULATION PROPERTIES Good
TEMPERATURE RESISTANCE (ASTM A491) Approx. -5˚C to + 100˚C
FLAMMABILITY- DRIED FILM Non Flammable
PACK SIZE IN KG 10/20/200

NEOPROOF RC 205 (ACRYLIC WATERPROOF MEMBRANE)

NEOPROOF RC 205
RC 205 is a Multipurpose Polymer Coating with high tack. On its own it forms a clear transparent coating. Used as a Safe Primer, Good Concrete Sealer. Product can be used in combination with Cement and Water to make a Flexible Cementitious Coating. Useful in RCC tank application
APPEARANCE & COLOUR Free Flowing Milky White Liquid
NVM % ( ASTM D 1475-03) 36 ± 5
VISCOSITY (POISE) SP. NO 4/7, RPM:10/20@ 25˚C 17 ± 5
SP. GRAVITY -ASTM-D 1644-03 1.0 ± 0.05
DRYING TIME @25˚C (ASTM D 1540-03) 10-20 minutes ( Approx)
CURING TIME (@20˚C 50% RH) (ASTM C 4125) 3-5 hrs
HARDNESS ( SHORE A) (ASTM-D 2240- 05) NA
ELONGATION(ASTM-D 2370-98 NA
WATER VAPOR TRANSMISSION
ASTM E 96-95;G / HR - M²
0.46
WATER PERMEABILITY (SSTM-A 3245) Almost Nil
COVERAGE PER SINGLE COAT PER KG## 35-45 sq. ft in concrete
TENSILE STRENGTH N / MM² (ASTM –D 412 -98 A) 0.51
ADHESION STRENGTH N / MM² ASTM –D903-98 NA
PULL OUT TEST N / MM² BS –1881:PART 207:1992 NA
UV RESISTIVITY NA
CHEMICAL RESISTANCE Resists Acid /Alkali/Salts
INSULATION PROPERTIES NA
TEMPERATURE RESISTANCE (ASTM A491) No Shrink / brittleness after 24 hrs @120˚C
FLAMMABILITY- DRIED FILM Non Flammable
PACK SIZE IN KG 1/5/10/20/200

NEOPROOF RC 210 (ACRYLIC WATERPROOF MEMBRANE)

NEOPROOF RC 210
RC 210 is a customised Roof Coating in Special colours and is ideal for both Horizontal & Vertical use. The product is tinted with compatible & optiomized colours. Hence it has good durability and does not fade off. Finds use where aesthetic is required together with waterproofing.
APPEARANCE & COLOUR High Viscous Liquid in Terracotta, Blue, Custom Colours
NVM % ( ASTM D 1475-03) 63 ± 5
VISCOSITY (POISE) SP. NO 4/7, RPM:10/20@ 25˚C 600 ± 100
SP. GRAVITY -ASTM-D 1644-03 1.30 ± 0.10
DRYING TIME @25˚C (ASTM D 1540-03) 2 hrs ( Approx)
CURING TIME (@20˚C 50% RH) (ASTM C 4125) 48 hrs
HARDNESS ( SHORE A) (ASTM-D 2240- 05) 55 ± 5
ELONGATION(ASTM-D 2370-98 > 300% - at break
WATER VAPOR TRANSMISSION
ASTM E 96-95;G / HR - M²
0.97
WATER PERMEABILITY (SSTM-A 3245) Almost Nil
COVERAGE PER SINGLE COAT PER KG## 25-35 sq. ft in concrete
TENSILE STRENGTH N / MM² (ASTM –D 412 -98 A) 1.99
ADHESION STRENGTH N / MM² ASTM –D903-98 66
PULL OUT TEST N / MM² BS –1881:PART 207:1992 2.704
UV RESISTIVITY Excellent
CHEMICAL RESISTANCE Good
INSULATION PROPERTIES Good in Lighter shades
TEMPERATURE RESISTANCE (ASTM A491) Approx. -30˚C to + 100˚C
FLAMMABILITY- DRIED FILM Non Flammable
PACK SIZE IN KG 10/20/200

NEOPROOF RC 555 (ACRYLIC WATERPROOF MEMBRANE)

NEOPROOF RC 555
RC 555 is a hybrid technology product produced by a blend of special resins, rubber & polymers. Its coating is tough & highly flexible. The product has excellent durability on exposed, water immersed condition etc. Its coating gives a very attractive lustrous finish. Ensure that top coat is undiluted.
APPEARANCE & COLOUR Lustrous Smooth Bronze Coloured Thick Paste
NVM % ( ASTM D 1475-03) 55 ± 5
VISCOSITY (POISE) SP. NO 4/7, RPM:10/20@ 25˚C 700 ± 100
SP. GRAVITY -ASTM-D 1644-03 0.99 ± 0.02
DRYING TIME @25˚C (ASTM D 1540-03) 60 minutes ( Approx)
CURING TIME (@20˚C 50% RH) (ASTM C 4125) 10-12 hrs (approx)
HARDNESS ( SHORE A) (ASTM-D 2240- 05) NA
ELONGATION(ASTM-D 2370-98 > 800%
WATER VAPOR TRANSMISSION
ASTM E 96-95;G / HR - M²
0.15
WATER PERMEABILITY (SSTM-A 3245) Almost Nil
COVERAGE PER SINGLE COAT PER KG## 50-60 sq. ft in Metals ; 35-40 sq. ft in Asbestos & 30-35 sq. ft in
TENSILE STRENGTH N / MM² (ASTM –D 412 -98 A) Concrete
ADHESION STRENGTH N / MM² ASTM –D903-98 Good
PULL OUT TEST N / MM² BS –1881:PART 207:1992 NA
UV RESISTIVITY Good
CHEMICAL RESISTANCE Resists Acid /Alkali/Salts
INSULATION PROPERTIES NA
TEMPERATURE RESISTANCE (ASTM A491) No Shrink / brittleness after 24 hrs @120˚C
FLAMMABILITY- DRIED FILM Non Flammable
PACK SIZE IN KG 10/20/200

NEOPROOF RC 202 (RUBBERIZED ELASTIMERIC MEMBRANE COATING)

NEOPROOF RC 202
RC 202 is a rubberized elastomeric high elongation coating. Has a great capacity to bridge cracks. Recommended for sandwich applications - roof garden, sunk portion etc. Preferably applied as a base coat. Use of suitable thinner for cleaning is required.
APPEARANCE & COLOUR Smooth Black Thick Paste
NVM % ( ASTM D 1475-03) 55 ± 5
VISCOSITY (POISE) SP. NO 4/7, RPM:10/20@ 25˚C 700 ± 100
SP. GRAVITY -ASTM-D 1644-03 0.95 ± 0.10
DRYING TIME @25˚C (ASTM D 1540-03) 10-20 minutes ( Approx)
CURING TIME (@20˚C 50% RH) (ASTM C 4125) 10-12 hrs (approx)
HARDNESS ( SHORE A) (ASTM-D 2240- 05) NA
ELONGATION(ASTM-D 2370-98 > 800%
WATER VAPOR TRANSMISSION
ASTM E 96-95;G / HR - M²
0.46
WATER PERMEABILITY (SSTM-A 3245) Almost Nil
COVERAGE PER SINGLE COAT PER KG## 40-50 sq. ft in Metals ; 30-40 sq. ft in Asbestos & 25-30 sq. ft in Concrete
TENSILE STRENGTH N / MM² (ASTM –D 412 -98 A) 0.51
ADHESION STRENGTH N / MM² ASTM –D903-98 GOOD
PULL OUT TEST N / MM² BS –1881:PART 207:1992 NA
UV RESISTIVITY NA
CHEMICAL RESISTANCE Resists Acid /Alkali/Salts
INSULATION PROPERTIES NA
TEMPERATURE RESISTANCE (ASTM A491) No Shrink / brittleness after 24 hrs @120˚C
FLAMMABILITY- DRIED FILM Non Flammable
PACK SIZE IN KG 1/4/10/20/200

APPLICATIONS


Application Areas:

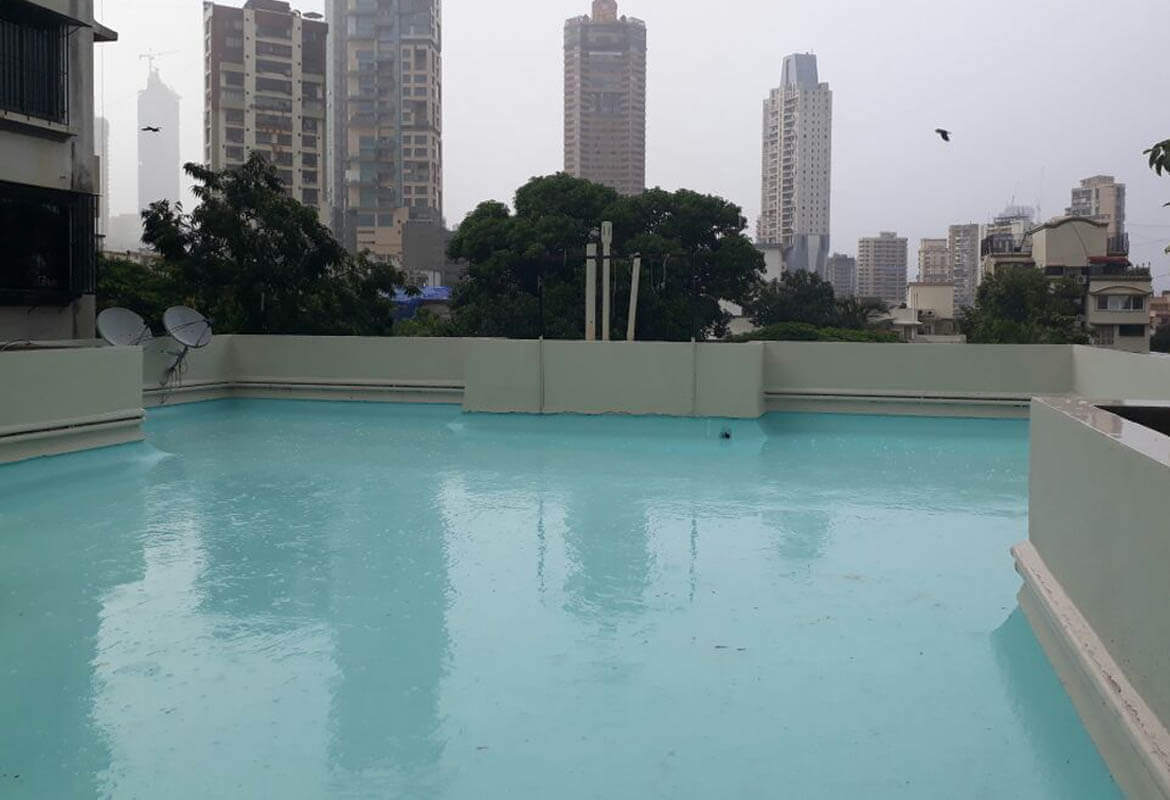

Finds extensive use as a waterproof membrane for roof slabs, terraces, balconies, sun shades, parapet walls, PU foam slabs, polyester built up roofs, maintenance of existing roofs, masonry and concrete walls, sunk portions in bathroom, basements, bridges, decks, metal surfaces etc . Also used as a protective coating to concrete, asphalt & bitumen, cement sheet, slates and tiles, zinc, timber surfaces etc. Provides additional waterproofing & protection when used as base or intermediate coat in brickbat coba /IPS flooring.

Application Areas:

Prepare surfaces clean, free from dirt, gravel, dust and oil. Ensure that Concrete & Cementitious substrates are well compacted & cured, with toweled finish, dry & smooth. Remove rust / contamination in case of metal. Remove traces, loose areas of past treatment. Any blisters must be cut & be filled. Masonry joints must be flush jointed. Apply primer first & then proceed for multiple coats, each at right angles to previous coat for higher DFT. A separation layer of polyethylene, Kraft paper or similar should be placed on membrane before topping with sand cement screed or tiles of 4 to 5 cm thickness. Reinforce with Glass Fibre Mesh ( Embedded into 1st Coat while it is still wet) for better results. All detailing to pipes, up stands, drains etc. should be mesh reinforced.

Apply by Standard roofing brooms, brushes, squeegees or airless spray equipment. Check viscosity to ensure smooth spray of the product. Allow full curing of each coat (ideal recoating interval is 24 hrs at 25oC & 65% RH) before applying next coat.

All NEOPROOF products are water dilutable. Refer Dilution ratio of each product before use.

DILUTION RATIO
PRODUCT PRIMER 1st COAT 2nd COAT
RC 200 / RC 210 5:2 Upto 25% Upto 15%
RC 202 1:1 Upto 20% Upto 20%
RC 203 5:2 Upto 20% Upto 10%
WC 201 5:2 Undiluted (if reqd. 5-10%)
RC 555 1:1 Upto 20% Undiluted
RC 205 1:3 Undiluted (Can be mixed with water & cement in the ratio of 1:2:3 or 5)

Storage & Shelf Life:

Store away from sunlight and preferably below 30oC. Storage should be protected from frost. Shelf life is 12 months from date of manufacturing in an unopened container


Cleaning:

Clean all tools immediately with water. Use hand cleaner followed by soap for hands
